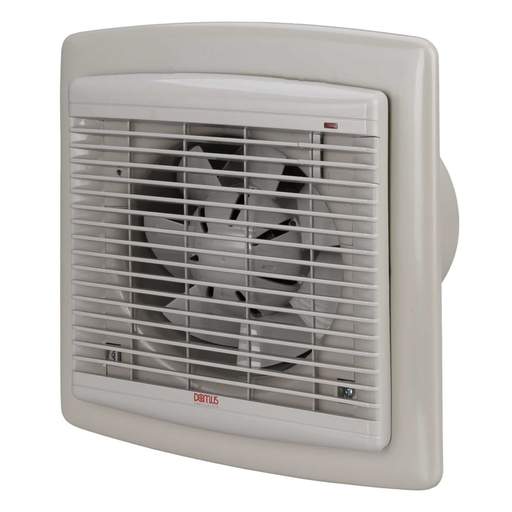

Domus Ventilation 150mm 6" D Series Ceiling / Panel Fan
Part Code: DX6PL
Stock Code: 2420-3152
Domus Ventilation 150mm 6" D Series Ceiling / Panel Fan
Part Code: DX6PL
Stock Code: 2420-3152
Features
- Suitable for solid or panel ceilings
- Can be installed with roof or weather terminals
- Optional exhaust points for flexible application
- Comes in complete kit for installation
- Suitable for up to 60°C
- Aperture required 270mm x 270mm
- Dynamically balanced motor and impeller
- Robust construction
- The fan is IP24 splash proof approved with the motor rated at IP44
- Flame retardant ABS polymer
- Compatible with a wide range of sensors
- High performance with low energy usage
- Control up to 5 of the same sized fans from one controller
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Domus Ventilation
- Airflow Litresper Second
- 119 l/s
- Colour
- Light Brown
- Decibel Rating
- 45 dB[A] @ 3 m
- Depth
- 200mm
- Dimensions
- (H)272 mm x (W)269 mm x (D)200 mm
- Guarantee
- 2 Years
- Height
- 272mm
- IP Rating
- IP24
- Material
- ABS Polymer
- Mounting
- Panel / Ceiling
- Operation Type
- Standard
- Packaging Types
- Each
- Power Rating
- 42W
- Product Range
- D Series
- Size
- 150 mm
- Supplied With
- Fan Duct Connecting Plenum, Fan Module and Internal Grille
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 3.95000kg
- Width
- 269mm
