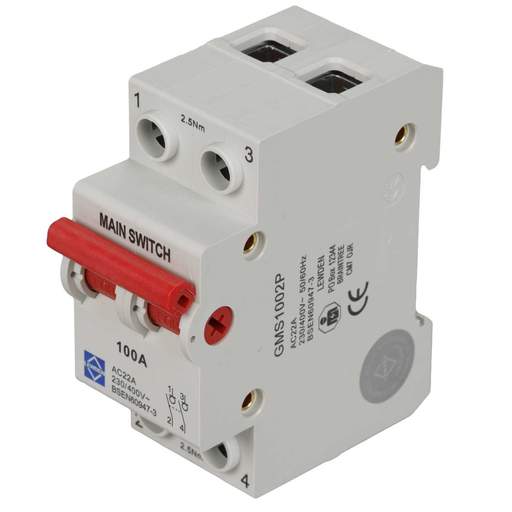

Lewden 100A DP Switch Disconnector Isolator
Part Code: GMS1002P
Stock Code: 2424-3076
Lewden 100A DP Switch Disconnector Isolator
Part Code: GMS1002P
Stock Code: 2424-3076
Features
- 2 pole incomer switch
- 10,000 cycles electrical life
- 10,000 operations mechanical life
- 50mm² max cable capacity
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lewden
- Current Rating
- 100A
- Depth
- 75.5mm
- Dimensions
- (H)81.5 mm x (W)36 mm x (D)75.5 mm
- Guarantee
- 1 Year
- Height
- 81.5mm
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 230V
- Weight
- 0.09800kg
- Width
- 36mm
