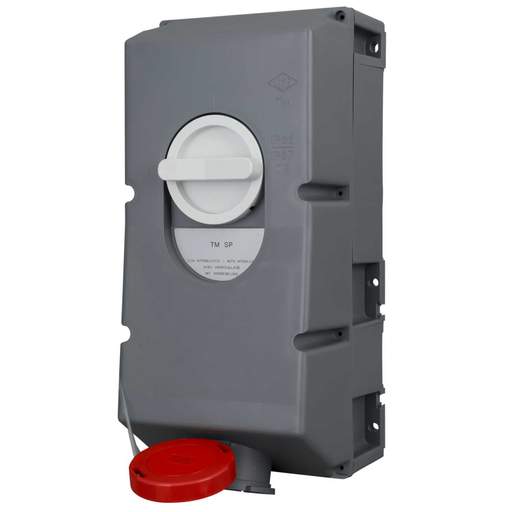

Ilme 125A 3P+E 415V Interlocked Switched Socket IP67

Part Code: TM12564SP

Stock Code: 2425-3300

Ilme 125A 3P+E 415V Interlocked Switched Socket IP67

Part Code: TM12564SP

Stock Code: 2425-3300

Delivery

1 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Compliant with EN 60309-1 -2 and -4
  • Enclosures in insulating self-extinguishing thermoplastic
  • Socket-outlets with bayonet fastening cover
  • Factory installed internal wiring
  • Cable entry with drilling template
  • Knob lockable in positions O and I

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Current Rating
125A
Dimensions
(H)565 mm x (W)260 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
565mm
IP Rating
IP67
Material
Thermoplastic
Mounting
Wall
Number of Poles
3P+E
Packaging Types
Each
Product Range
Interlocked Switched Socket
Standards
EN 60309
Unspsc V18
39121406
Voltage Rating
415V
Weight
10.64kg
Width
260mm
