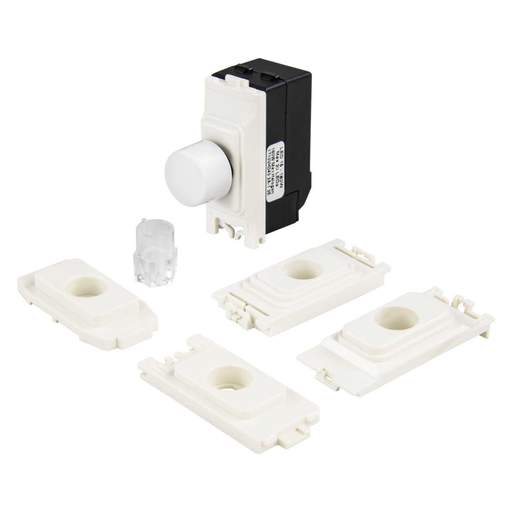

Varilight 2 Way 180W Rotary LED Grid Dimmer Module
Part Code: GKP180WMG
Stock Code: 2111-7100
Varilight 2 Way 180W Rotary LED Grid Dimmer Module
Part Code: GKP180WMG
Stock Code: 2111-7100
Features
- V-Com intelligent TRIAC leading edge dimming technology
- Soft start feature and intelligent overload protection
- Suitable for many dimmable LED lamps
- Create your own switch combinations
- Suitable for most manufacturers grid plates
- Recommended back box depth: 47mm
- Maximum load rating: LED; 180W [Halogen; 180W]
- Intended applications: Commercial and domestic lighting circuits including many dimmable LEDs [Max 20 LEDs]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Varilight
- Colour
- White
- Compliance
- UKCA, CE
- Current Rating
- 0.8A
- Depth
- 54mm
- Dimensions
- (H)61 mm x (W)23 mm x (D)54 mm
- Finish
- White
- Guarantee
- Lifetime
- Height
- 61mm
- Lamp Type
- LED GLS Halogen
- Mounting
- Grid
- Mounting Depth
- 47mm
- Number of Gangs
- 1
- Number of Modules
- 1
- Number of Ways
- 2
- Operating Load
- 0 - 180W - Mains Halogen and Incandescent; 15 - 180W LED Lamps and Fittings
- Operation Type
- Push On / Off
- Packaging Types
- Bag
- Power Rating
- 180W
- Product Range
- V-Com
- Standards
- BS EN 60669-2-1
- Terminal Capacity Live Neutral
- 3 x 1.5mm²
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 230V
- Weight
- 0.07000kg
- Width
- 23mm
