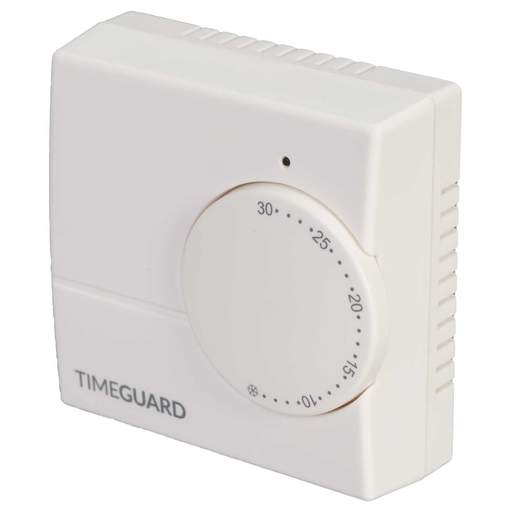

Timeguard Electronic Room Thermostat

Part Code: TRT030N

Stock Code: 2447-0137

Timeguard Electronic Room Thermostat

Part Code: TRT030N

Stock Code: 2447-0137

Delivery

71 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Easy adjustable dial with clearly marked temperature scale
  • 5°C to 30°C set temperature range
  • Temperature swing adjustment (using DIP switches) between 0.5ºC and 1ºC 0.5ºC
  • PID control
  • Output led (illuminates on call for heat)
  • Single pole, single throw (SPST).
  • Surface mount with wall plate included
  • 3 wire connection (double insulated)
  • 6 (2) A at 230V

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Timeguard
Colour
White
Compliance
CE
Current Rating
6A
Depth
38mm
Dimensions
(H)86 mm x (W)88 mm x (D)38 mm
Guarantee
3 Years
Height
86mm
Mounting
Surface
Neon
Yes
Packaging Types
Each
Supplied With
Wall Plate
Switch Type
SPST
Tamper Proof
No
Temperature Range
5 - 30°C
Unspsc V18
39122229
Voltage Rating
230V
Weight
0.188kg
Width
88mm
