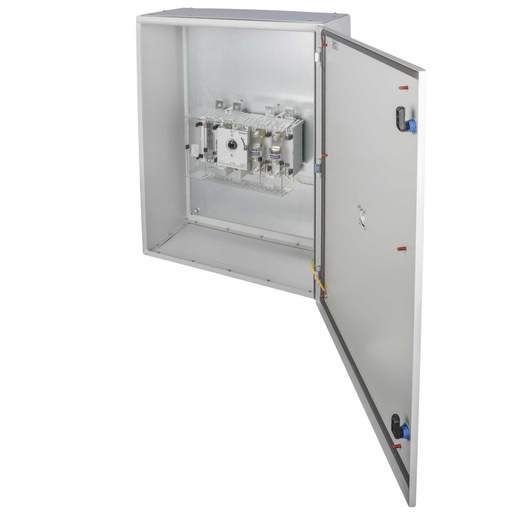

MCG 315A TP+N Metal Switch Fuse
Part Code: MCGSF315TPN
Stock Code: 2453-6020
MCG 315A TP+N Metal Switch Fuse
Part Code: MCGSF315TPN
Stock Code: 2453-6020
Features
- Triple Pole and switched neutral [4th pole]
- IP65 RAL 7035 enclosure
- Padlockable in OFF position
- Defeatable door interlocked handle
- IP20 terminal protection included
- Removable top and bottom gland plates
- Door earth lead fitted as standard
- Conforms with IEC 60947-1 & 3
- Bureau Veritas, KEMA certified and CE approved
- Supplied with BS fuses
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Removable Top and Bottom Gland Plates
- Compliance
- CE, KEMA
- Current Rating
- 315A
- Depth
- 300mm
- Dimensions
- (H)800 mm x (W)600 mm x (D)300 mm
- Handle Type
- Door Interlocked
- Height
- 800mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- Mild Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Standards
- IEC 60947-1 & 3
- Supplied With
- BS Fuses
- Terminal Size
- M10
- Terminal Type
- Lug
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Weight
- 38.50000kg
- Width
- 600mm
