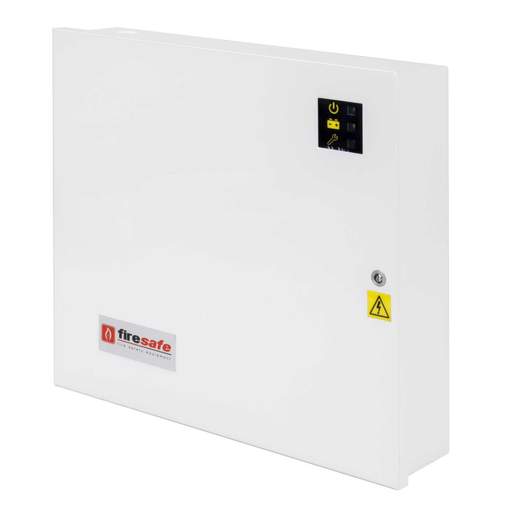

Firesafe 3A 24V DC Boxed Power Supply
Part Code: FPS3/N
Stock Code: 2462-8192
Firesafe 3A 24V DC Boxed Power Supply
Part Code: FPS3/N
Stock Code: 2462-8192
Features
- Ideal for access control, fire systems [where compliance with EN54-4 is not required] and general purpose applications
- 27.6V DC output
- Cost effective switch mode technology
- High energy efficient - reducing energy bills
- Modular construction means easy maintenance and upgrading
- Full rated current to load + 0.8A battery charging
- 90-264V AC range
- Deep discharge protection and electronic overload as well as mains transient protection
- LED indication for mains status, output or battery fuse fail, output short circuit or low voltage and battery low or missing
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Rating
- 3A
- Depth
- 80mm
- Dimensions
- (H)310 mm x (W)340 mm x (D)80 mm
- Guarantee
- 3 Years
- Height
- 310mm
- Packaging Types
- Each
- Temperature Range
- -10 - 40°C
- Unspsc V18
- 46171619
- Unspsc V24
- 46171619
- Voltage Rating
- 24V
- Weight
- 3.13000kg
- Width
- 340mm
