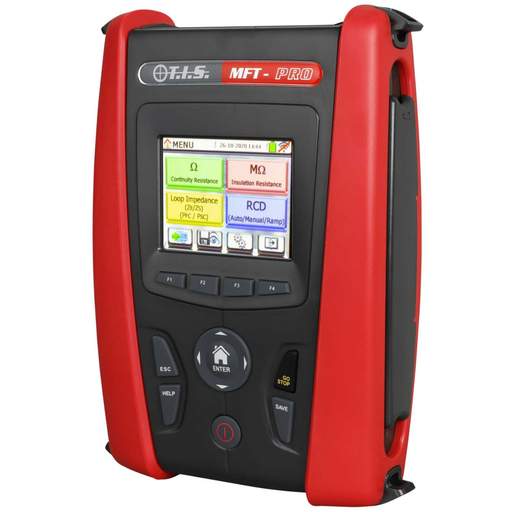

TIS MFTPRO Multifunction Installation Tester Bundle
Part Code: TISMFTPRO BUNDLE
Stock Code: 2465-1574
TIS MFTPRO Multifunction Installation Tester Bundle
Part Code: TISMFTPRO BUNDLE
Stock Code: 2465-1574
Features
- Resistive touchscreen, works even with gloves on
- Full help schematic display
- Phase to phase loop testing
- TRMS for accurate measurement on noisy and distorted circuits
- Built-in fuse characteristic table
- 200mA continuity measurement
- Displays both PFC and PSC simultaneously on no-trip test
- Phase sequence measurement
- Insulation testing at 50, 100, 250, 500 and 1000V
- Accurate and reliable pro lock no-trip loop testing
- RCD testing up to 1A or 10A with an optional adapter
- Automatic RCD test, 0°, 180° , x 1, x ½, x 5, current with ramp test
- Tripping time for general, selective and delayed RCD's A, AC and B
- Measurement of voltage, voltage drop, current, active, reactive and apparent power
- Measurement of power factor [cos-phi]
- Voltage and harmonics up to the 25th
- 17th amendment 3 and 18th edition
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- 3 Phase Rotation
- Yes
- Ac Voltage Measurement
- 460V AC
- Batteries Included
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 100 Ω
- Depth
- 75mm
- Dimensions
- (H)225 mm x (W)165 mm x (D)75 mm
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 225mm
- Insulation Resistance Measuring Range
- 0.01 MΩ - 199.9 MΩ
- Insulation Test Voltage
- 50V / 100V / 250V / 500V / 1000V
- Loop Impedance Range
- 0.01 Ω - 199 Ω
- Packaging Types
- Each
- Rcd Settings
- ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
- Rcd Test Range
- 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
- Safety Range
- CAT III 240V to earth, maximum 415V between inputs
- Standards
- BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
- Supplied With
- 1 x 3 wire lead set with croc clips, mains plug test lead, neck strap and hard carry case
- Type
- Multifunction Installation Tester
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Weight
- 5.16kg
- Width
- 165mm
