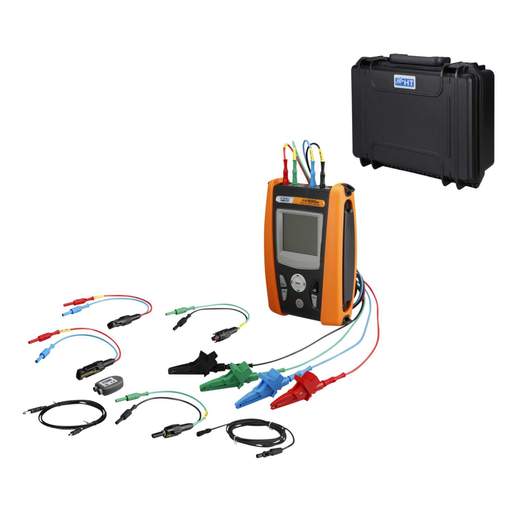

TIS Solar I-V Curve Tester
Part Code: I-V500W
Stock Code: 2465-1583
TIS Solar I-V Curve Tester
Part Code: I-V500W
Stock Code: 2465-1583
Features
- Detection of I-V curve on PV modules and strings 1500V/10A - 1000V/15A
- Quick IVCK test for measuring Voc and Isc on PV modules and strings up to 1500V/15A
- Internal memory storage 249 I-V Curves
- Use of remote unit SOLAR-02 with USB\RF connection
- Custom management of internal PV module database [30 internal/30.000 on software/app]
- Temperature measurement of cell and environment
- Measurement of irradiation with reference cell
- Summary table of main electric parameters
- Provided PC interface with software for Windows
- Integrated Wi-Fi connection and compatibility with HTANALYSIS app
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- Battery Size
- AA
- Battery Type
- Alkaline
- Dc Current Measurement
- 15A DC
- Dc Voltage Measurement
- 1500V DC
- Depth
- 75mm
- Dimensions
- (H)235 mm x (W)165 mm x (D)75 mm
- Display Type
- LCD
- Guarantee
- 1 Year
- Height
- 235mm
- Number of Batteries
- 6
- Packaging Types
- Each
- Supplied With
- 4 Cables with Alligator Clips, 2 Adapters with Connectors MC3, 2 Adapters with Connectors MC4, TOPVIEW2006 Windows Software Optical/USB C2006 Cable, Rigid Carrying Case, User Manual and Calibration Certificate
- Unspsc V18
- 41114407
- Unspsc V24
- 41114407
- Weight
- 1.20000kg
- Width
- 165mm
