TIS Power Quality Analyser
Part Code: PQA820
Stock Code: 2465-1601
TIS Power Quality Analyser
Part Code: PQA820
Stock Code: 2465-1601
Features
- AC TRMS voltage and current measurements on single and three phase systems
- Active, reactive and apparent power/energy
- Cosphi and power factor
- Voltage, current, DC power and neutral measurements
- Voltage unbalance [neg%, zero%]
- Measurements using external CT and VT
- Histograms of voltage/current harmonics and THD%
- Voltage and current harmonic analysis up to the 49th
- Calculation and recording of voltage/current THD%
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- Ac Current Measurement
- 1000A
- Ac Voltage Measurement
- 415V AC
- Battery Level Indicator
- Yes
- Battery Size
- Sealed In
- Battery Type
- Lithium-Ion
- Dc Current Measurement
- 1000A DC
- Dc Voltage Measurement
- 415V DC
- Depth
- 110mm
- Dimensions
- (H)210 mm x (W)245 mm x (D)110 mm
- Display Type
- LCD
- Height
- 210mm
- IP Rating
- IP65
- Packaging Types
- Each
- Safety Range
- 300V CAT IV
- Supplied With

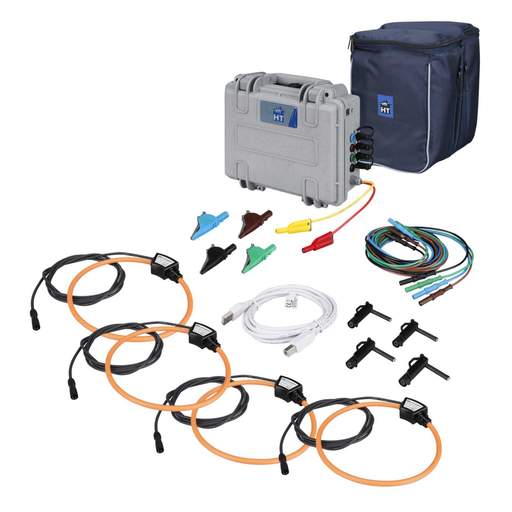

- 3000A Flex Clamp, Set of 5 Leads with Alligator Clips, AC/DC Battery Charger, Rechargeable 3.7V Li-Ion battery, Touch-Screen Pen, Windows Software with USB Cable, Rigid Soft Bag, User Manual CD-ROM, Quick User Guide and Calibration Certificate
- Unspsc V18
- 41113613
- Unspsc V24
- 41113613
- Weight
- 0.70000kg
- Width
- 245mm
