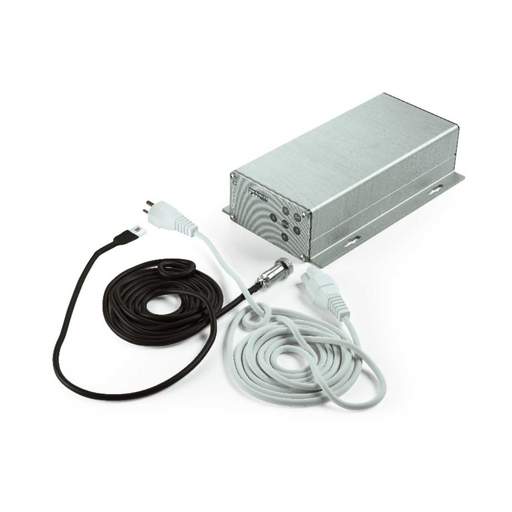

Nanoleaf DMX Adapter
Part Code: NL30-0003
Stock Code: 2467-3654
Nanoleaf DMX Adapter
Part Code: NL30-0003
Stock Code: 2467-3654
Features
- With the Nanoleaf DMX Adapter, you can individually address red, green, blue, and white on each panel to take your light and sound design to the next level
- Enables a DMX512 console to control the Nanoleaf light panels
- Each Nanoleaf DMX Adapter supports up to 30 panels
- Daisychain multiple adapters to control up to 128 panels on one DMX universe
- Each panel consumes 4 channels [red / green / blue / white]
- Program a base channel for all panels [channel offset]
- Program panel channels individually [with respect to the base channel]
- Auto-discovery of panels and panel layout on adapter boot-up
- AC power input with universal voltage [automatic switching]
- Fully configurable channel IDs
- Durable, brushed aluminum construction
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Guarantee
- 2 Years
- Packaging Types
- Box
- Previously Known As
- NL30-0002
- Supplied With
- Nanoleaf DMX Adapter, Light Panels Connector and AC Cable
- Unspsc V18
- 39111521
- Unspsc V24
- 39111521
- Voltage Rating
- 230V
- Weight
- 0.83900kg
