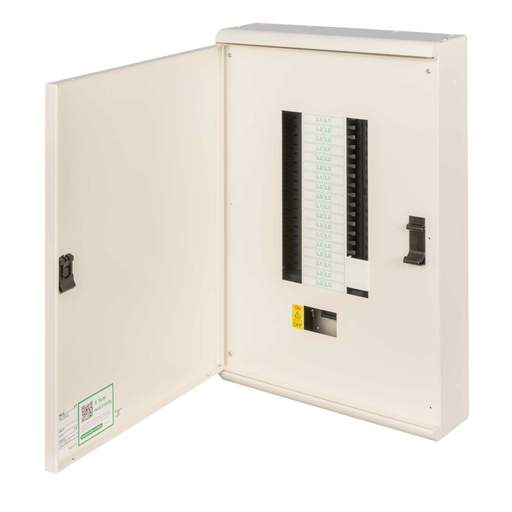

Schneider Merlin Acti9 Isobar P 12 Way 250A TP+N Type B Metalclad Distribution Board without Incomer
Part Code: SEA9BPN12
Stock Code: 2473-8784
Schneider Merlin Acti9 Isobar P 12 Way 250A TP+N Type B Metalclad Distribution Board without Incomer
Part Code: SEA9BPN12
Stock Code: 2473-8784
Features
- Plug on neutral busbar
- Wireless RCBO solution
- IP2X internal shrouding and IP3X externally
- Enhanced wiring space
- Full compatibility with existing Acti9 Isobar devices and accessories
- 5 year product warranty registration available
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Acti 9 Isobar P
- Current Rating
- 250A
- Depth
- 139mm
- Dimensions
- (H)700 mm x (W)470 mm x (D)139 mm
- Guarantee
- 18 Months
- Height
- 700mm
- IP Rating
- IP3X
- Ik Rating
- IK05
- Incoming Device
- Not Supplied
- Material
- Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 12
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- BS EN 61439-3
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V
- Weight
- 15.06000kg
- Width
- 470mm
