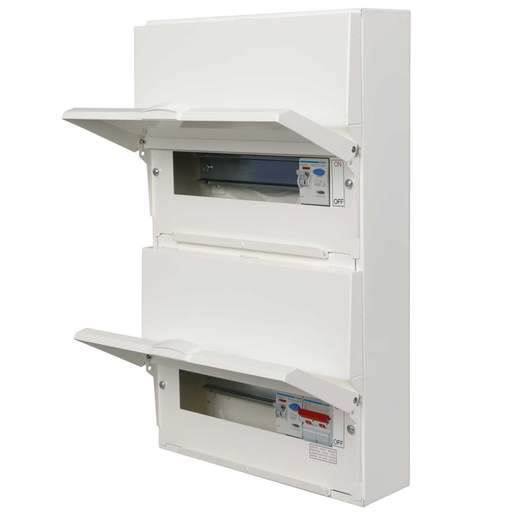

Hager 8 + 10 Dual Row Dual RCD Split Load Metal Clad Consumer Unit with Knockouts

Part Code: VM90810HK

Stock Code: 2476-2256

Hager 8 + 10 Dual Row Dual RCD Split Load Metal Clad Consumer Unit with Knockouts

Part Code: VM90810HK

Stock Code: 2476-2256

Delivery

2 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • 8 + 10 way split load consumer unit
  • Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
  • Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
  • Top and bottom knockouts
  • Design 30 is our enhanced consumer unit, created to be more aesthetically pleasing whilst including extra features to ease installation
  • Conforms to BS EN 61439-3 Including Annex ZB

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Board Configuration
8 + 10
Cable Entry
Selection of Knockouts
Colour
White
Current Rating
100A
Depth
102.5mm
Dimensions
(H)480 mm x (W)293 mm x (D)102.5 mm
Door Type
Top Hinged
Guarantee
2 Years
Height
480mm
Incoming Device
100A Isolator
Incoming Terminal Capacity
50mm²
Knockouts
Square
Material
Steel
Mounting
Surface
Number of Modules
24
Number of Outgoing Ways
18
Packaging Types
Each
Product Range
Design 30
Rcd Rating
100A
Rcd Type
A
Standards
BS EN 61439-3
Surge Protection Fitted
No
Surge Protection Ready
No
Tripping Sensitivity
30mA
Unspsc V18
39121110
Voltage Rating
230V
Weight
2.9kg
Width
293mm
