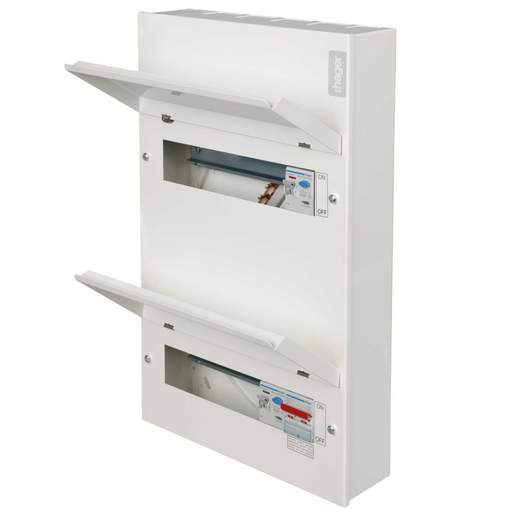

Hager 8 + 10 Dual Row Dual 100A RCD Split Load Metal Clad Consumer Unit
Part Code: VML90810H
Stock Code: 2476-2343
Hager 8 + 10 Dual Row Dual 100A RCD Split Load Metal Clad Consumer Unit
Part Code: VML90810H
Stock Code: 2476-2343
Delivery
8 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- 8 + 10 way split load consumer unit
- Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
- Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
- Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Conforms to BS EN 61439-3 Including Annex ZB
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Board Configuration
- 8 + 10
- Cable Entry
- Selection of Knockouts
- Colour
- White
- Current Rating
- 100A
- Depth
- 100mm
- Dimensions
- (H)486 mm x (W)299 mm x (D)100 mm
- Door Type
- Top Hinged
- Guarantee
- 2 Years
- Height
- 486mm
- Incoming Device
- 100A Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 24
- Number of Outgoing Ways
- 18
- Packaging Types
- Each
- Product Range
- Dual Row Design 10
- Rcd Rating
- 100A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Voltage Rating
- 230V
- Weight
- 6.3kg
- Width
- 299mm
