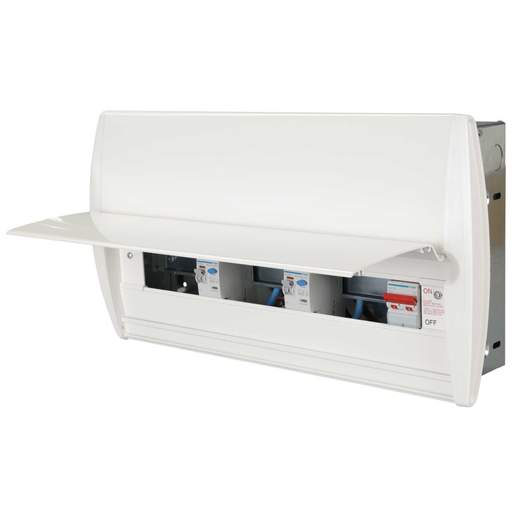

Hager 16 Way Dual 100A RCD High Integrity Flush Metal Clad Consumer Unit
Part Code: VSR916CU
Stock Code: 2476-2436
Hager 16 Way Dual 100A RCD High Integrity Flush Metal Clad Consumer Unit
Part Code: VSR916CU
Stock Code: 2476-2436
Features
- 16 way high integrity configurable flush consumer unit
- Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
- Consumer unit contains rear cable entry, along with top and bottom knockouts
- Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Design 50 focuses on clean aesthetics and a flush fit for seamless integration into any home
- Cut out size - H 252mm x W 478mm
- Adjustable depth in wall 72mm-92mm
- Conforms to BS EN 61439-3 Including Annex ZB
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Board Configuration
- Configurable
- Cable Entry
- Rear, Top and Bottom Knockouts
- Current Rating
- 100A
- Depth
- 105mm
- Dimensions
- (H)284 mm x (W)539 mm x (D)105 mm
- Door Type
- Top Hinged
- Guarantee
- 2 Years
- Height
- 284mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Steel
- Mounting
- Flush
- Number of Modules
- 22
- Number of Outgoing Ways
- 16
- Packaging Types
- Each
- Product Range
- Flush Design 50
- Rcd Rating
- 100A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 5kg
- Width
- 539mm
