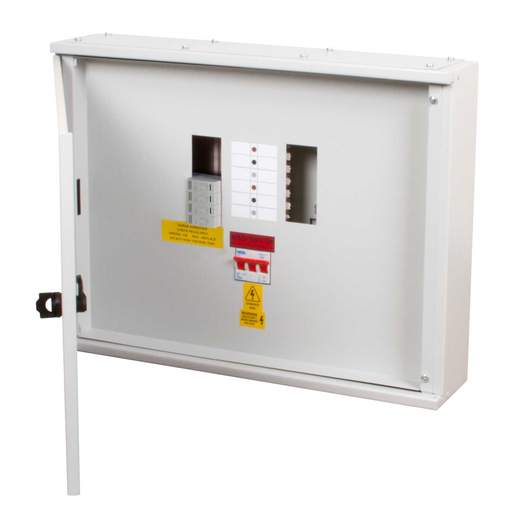

Proteus XL 3 Way TP+N Type B Distribution Board with 125A Incomer and Type 2 SPD
Part Code: XL4S125T2
Stock Code: 2481-3505
Proteus XL 3 Way TP+N Type B Distribution Board with 125A Incomer and Type 2 SPD
Part Code: XL4S125T2
Stock Code: 2481-3505
Features
- XL range has over 100% more cabling space than standard 3 phase distribution boards
- TP+N distribution board fitted with Type 2 surge protected device
- Complete with 125A triple pole incomer
- Top and bottom removable glandplates for ease of cutting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus XL
- Busbar Rating
- 125A
- Cable Entry
- Top and Bottom
- Current Rating
- 125A
- Depth
- 132mm
- Dimensions
- (H)457 mm x (W)600 mm x (D)132 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Height
- 457mm
- IP Rating
- IP31
- Incoming Device
- 125A TP Isolator
- Incoming Terminal Capacity
- 50 mm2 Cable, Neutral M10 Bolt and Earth M8 Bolt
- Lockable
- Yes
- Material
- Cold Rolled Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 3
- Packaging Types
- Each
- Product Range
- XL Boards
- Standards
- BS EN 61439-1-3
- Supplied With
- 125A Triple Pole Switch Disconnector Incomer and Type 2 Surge Protection Device
- Torque Settings
- Isolator 2-2.5 Nm, M8 and M10 Bolt 20Nm max.
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 400V
- Weight
- 12.00000kg
- Width
- 600mm
