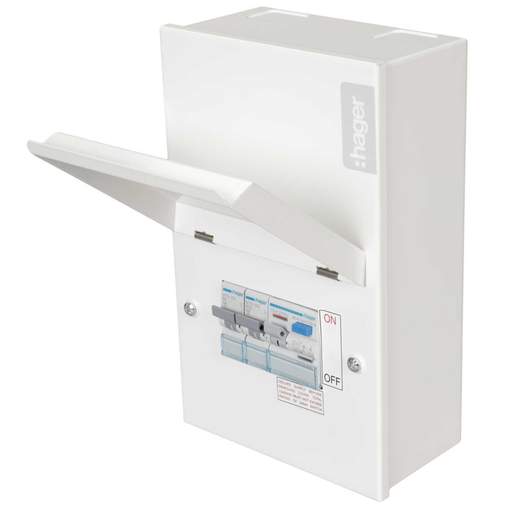

Hager Metal Clad Garage Unit with 40A Type A RCD and 6A and 32A MCB
Part Code: VML24AH
Stock Code: 2481-9001
Hager Metal Clad Garage Unit with 40A Type A RCD and 6A and 32A MCB
Part Code: VML24AH
Stock Code: 2481-9001
Features
- Fully loaded 2 way garage consumer unit supplied with a 40A 30mA Type A RCD and 1 x 32A 6kA and 1 x 6A 6kA MCB
- Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Design 10 consumer units contain top, bottom, rear knockouts and a meter tail cable entry plate as standard
- Conforms to BS EN 61439-3
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Selection of Knockouts / Cutouts
- Current Rating
- 40A
- Depth
- 100mm
- Dimensions
- (H)246 mm x (W)155 mm x (D)100 mm
- Guarantee
- 2 Years
- Height
- 246mm
- IP Rating
- IP2XC
- Incoming Device
- 40A 30mA Type A RCD
- Incoming Terminal Capacity
- 25mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 4
- Number of Outgoing Ways
- 2
- Packaging Types
- Each
- Product Range
- Design 10
- Rcd Rating
- 40A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Supplied With
- 40A 30mA Type A RCD, 6A and 32A MCB
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 2.22000kg
- Width
- 155mm
