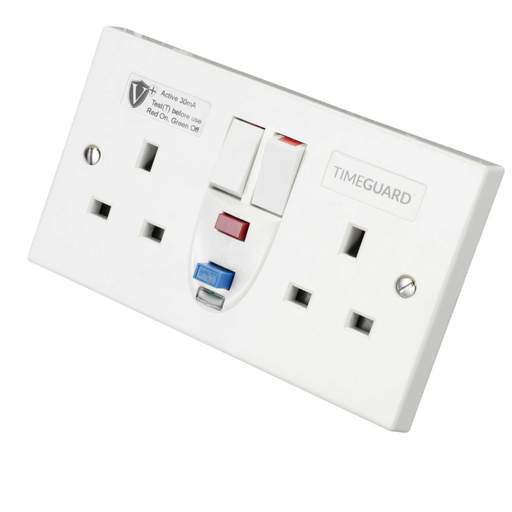

Timeguard 13A 2 Gang Active RCD Socket White
Part Code: RCD05WAVN
Stock Code: 2483-8234
Timeguard 13A 2 Gang Active RCD Socket White
Part Code: RCD05WAVN
Stock Code: 2483-8234
Features
- New dual flag technology provides added protection against the risks of electrocution
- Provides additional safety to both the installer and end user by showing clear visual indication as to the status of the RCD
- A Red flag shows the device is ON with a live supply to the appliance
- A Green flag shows the device is safe with the supply to the appliance switched OFF
- Continues to protect with Lost Neutral / pulsating DC earth fault
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Timeguard
- Colour
- White
- Current Rating
- 13A
- Depth
- 43mm
- Dimensions
- (H)88 mm x (W)148 mm x (D)43 mm
- Dual Earth
- Yes
- Fixing Centres
- 120.6mm
- Guarantee
- 3 Years
- Height
- 88mm
- Mounting
- Wall
- Mounting Depth
- 25mm
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Operation Type
- Non-Latching
- Packaging Types
- Each
- Product Range
- Valiance+
- Rcd Rating
- 30mA
- Standards
- BS 7288, BS 1363-2
- Switched Unswitched
- Switched
- Test Button
- Yes
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 0.29500kg
- Width
- 148mm
