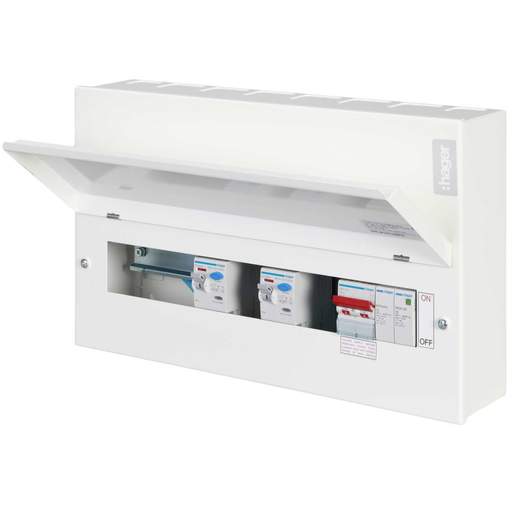

Hager 10 Way Dual RCD Configurable High Integrity Metal Clad Consumer Unit with SPD
Part Code: VML910CUSPD
Stock Code: 2484-7813
Hager 10 Way Dual RCD Configurable High Integrity Metal Clad Consumer Unit with SPD
Part Code: VML910CUSPD
Stock Code: 2484-7813
Features
- Supplied with a full metal DIN rail, 100A switch disconnector incomer, 2 x 100A 30mA RCDs and a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- All Design 10 consumer units contain top, bottom and rear knockouts
- Type 2 SPD fitted
- Conforms to BS EN 61439-3 Including Annex ZB [16kA rating]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Board Configuration
- Configurable
- Current Rating
- 100A
- Depth
- 83mm
- Dimensions
- (H)246 mm x (W)406 mm x (D)83 mm
- Door Type
- Top Hinged
- Guarantee
- 2 Years
- Height
- 246mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 50mm²
- Knockouts
- Square
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 18
- Number of Outgoing Ways
- 10
- Packaging Types
- Each
- Product Range
- Design 10
- Rcd Rating
- 100A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 5.3kg
- Width
- 406mm
