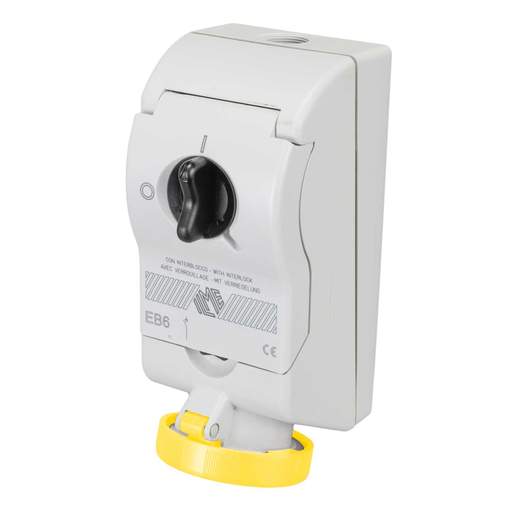

Ilme EB6 32A 2P+E 110V Interlocked Socket IP66
Part Code: KI3243EB6
Stock Code: 2510-1454
Ilme EB6 32A 2P+E 110V Interlocked Socket IP66
Part Code: KI3243EB6
Stock Code: 2510-1454
Features
- Mechanical interlock
- Lockable switch
- Factory installed internal wiring
- Cable entry with M25 thread
- Self-extinguishing thermoplastic enclosure and inserts
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Yellow
- Current Rating
- 32A
- Depth
- 117mm
- Dimensions
- (H)228 mm x (W)114 mm x (D)117 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 228mm
- IP Rating
- IP66
- Mounting
- Wall
- Number of Poles
- 2P E
- Packaging Types
- Each
- Product Range
- Interlocked Socket Outlets
- Standards
- EN 60309
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 110V
- Weight
- 1.123kg
- Width
- 114mm
