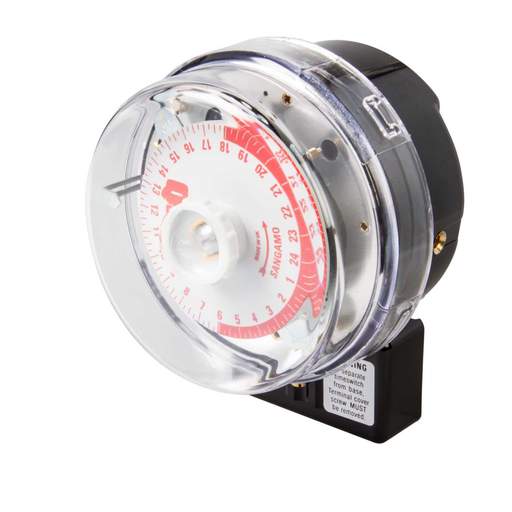

Sangamo 20A 4 Pin 24 Hour Round Pattern Time Switch 2 On / Off
Part Code: Q555.2
Stock Code: 2510-8795
Sangamo 20A 4 Pin 24 Hour Round Pattern Time Switch 2 On / Off
Part Code: Q555.2
Stock Code: 2510-8795
Features
- Programming: 24 hour with 2 on/off operations
- Current rating: 20A
- Connection pins: 4
- Battery reserve: 100 hours
- Day omit dial: Yes (omits the 'ON' operation)
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black/White
- Compliance
- CE, BEAB
- Current Rating
- 20A
- Day Omit
- Yes
- Depth
- 82mm
- Dimensions
- (H)136 mm x (W)105.7 mm x (D)82 mm
- Guarantee
- 5 Years
- Height
- 136mm
- Manual Override
- Yes
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Surface
- Number of On offs
- 2
- Number of Pins
- 4
- Number of Poles
- Single Pole
- Number of Wire Connections
- 4
- Packaging Types
- Box
- Product Range
- Standard RPTS Q554
- Programming Type
- 24 Hour
- Standards
- BS EN 60730
- Timer Adjustment
- 15 Min
- Type
- Standard
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Free Contacts
- No
- Voltage Rating
- 230V
- Weight
- 0.408kg
- Width
- 105.7mm
