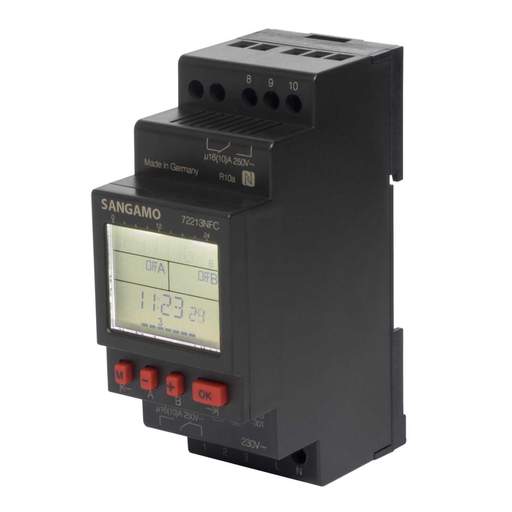

Sangamo 7 Day Dual Channel 2 Module Timer NFC Enabled
Part Code: 72213NFC
Stock Code: 2510-8840
Sangamo 7 Day Dual Channel 2 Module Timer NFC Enabled
Part Code: 72213NFC
Stock Code: 2510-8840
Features
- Programmable by Sangamo Connect Android App using NFC
- Daily and weekly program
- Optimised consumption: only 0.2W in Standby mode
- Elapsed time and pulse counter
- Text based menu and self-explanatory symbols
- Quick and intuitive programmable time switch
- Can be programmed with supply disconnected
- 10 years battery reserve
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Battery Back Up
- Yes
- Changeover
- Yes
- Colour
- Black
- Depth
- 63mm
- Dimensions
- (H)90 mm x (W)36 mm x (D)63 mm
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 90mm
- Holiday Setting
- Yes
- IP Rating
- IP20
- Load Rating[Inductive]
- 10A
- Manual Override
- Yes
- Material
- Self Extinguishing Thermoplastic
- Memory Locations
- 56
- Minimum Time Settings
- 1min
- Mounting
- DIN Rail
- Number of Channels
- 2
- Number of Modules
- 2
- Packaging Types
- Each
- Programming Type
- Daily / Weekly
- Software Programming
- Android NFC
- Switching Rating
- 16A
- Tamper Proof
- Yes
- Timer Configuration
- Daily and Weekly
- Type
- Standard
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 230V
- Weight
- 0.13kg
- Width
- 36mm
