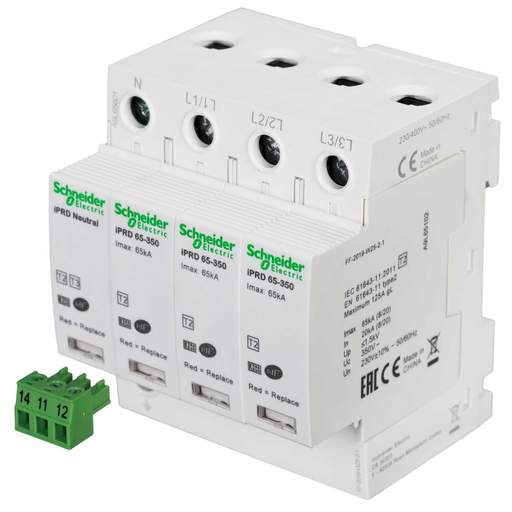

Schneider Acti9 65kA 4 Module 3 Pole and Neutral Type 2 Surge Protector Remote Transfer
Part Code: A9L65601
Stock Code: 2511-8218
Schneider Acti9 65kA 4 Module 3 Pole and Neutral Type 2 Surge Protector Remote Transfer
Part Code: A9L65601
Stock Code: 2511-8218
Features
- Single Pole and neutral
- Class Type 2 surge arrester
- Pluggable cartridge
- With remote signalling
- Earthing system TN-S and TT
- Surge arrester technology MOV and GDT
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- CE
- Depth
- 69mm
- Dimensions
- (H)85 mm x (W)72 mm x (D)69 mm
- Guarantee
- 18 Months
- Height
- 85mm
- Incoming Terminal Capacity
- 2.5 - 35 mm²
- Maximum Discharge Current
- 65kA
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- Triple Pole and Neutral
- Outgoing Terminal Capacity
- 2.5 - 35 mm²
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- IEC 61643
- Suitable For
- TN-S and TT Earthing
- Type
- 2
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 230V 400V
- Weight
- 0.53300kg
- Width
- 72mm
