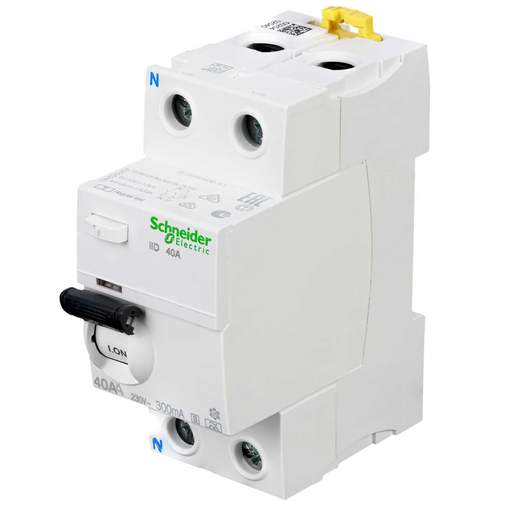

Schneider Acti9 40A 2 Pole 300mA Type A Selective Time Delay RCD
Part Code: A9R25240
Stock Code: 2511-8341
Schneider Acti9 40A 2 Pole 300mA Type A Selective Time Delay RCD
Part Code: A9R25240
Stock Code: 2511-8341
Features
- VISI-SAFE for safe operation and maintenance work
- Class-2 insulation
- VisiTrip detects faulty outgoers quickly and reduces intervention time
- Fully immune earth leakage protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 40A
- Depth
- 73.5mm
- Dimensions
- (H)91 mm x (W)36 mm x (D)73.5 mm
- Guarantee
- 18 Months
- Height
- 91mm
- Incoming Terminal Capacity
- 35 mm²
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- 2 Pole
- Outgoing Terminal Capacity
- 35 mm²
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- EN/IEC 61008-1
- Time Delay
- Selective
- Tripping Sensitivity
- 300mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V
- Weight
- 0.21500kg
- Width
- 36mm
