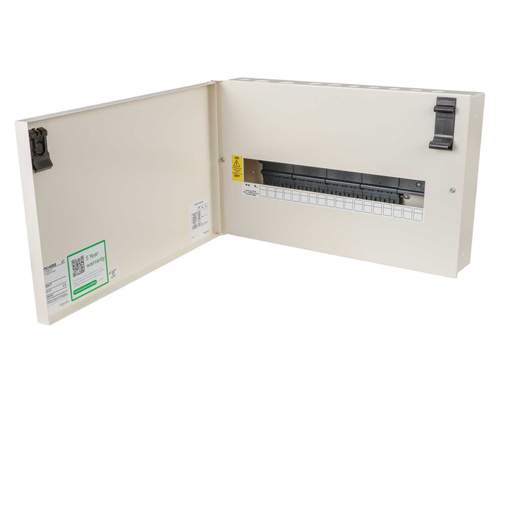

Schneider Merlin Acti9 Isobar P 14 + 4 Way 125A SP+N Type A Multi Service Metalclad Board without Incomer
Part Code: SEA9APN148MS
Stock Code: 2512-0057
Schneider Merlin Acti9 Isobar P 14 + 4 Way 125A SP+N Type A Multi Service Metalclad Board without Incomer
Part Code: SEA9APN148MS
Stock Code: 2512-0057
Features
- 14 outgoing MCB ways and 4 DIN rail ways for modular devices
- Plug on neutral busbar
- Wireless RCBO solution
- IP20 internal shrouding and IP3X externally
- Enhanced wiring space
- Full compatibility with existing Acti9 Isobar devices and accessories
- 5 year product warranty registration available
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Acti 9 Isobar P
- Board Configuration
- 14 + 4
- Current Rating
- 125A
- Depth
- 117mm
- Dimensions
- (H)300 mm x (W)489 mm x (D)117 mm
- Guarantee
- 18 Months
- Height
- 300mm
- IP Rating
- IP3X
- Incoming Device
- Not Supplied
- Material
- Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 14+4
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- BS EN 60898
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 6.38700kg
- Width
- 489mm
