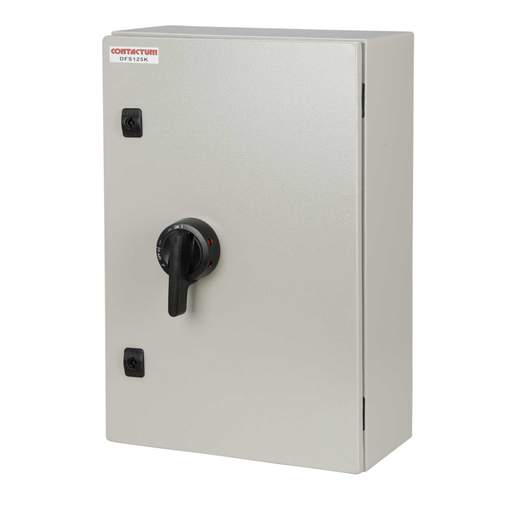

Contactum 125A TP+N Metal Fused Switch
Part Code: DFS125K
Stock Code: 2546-3365
Contactum 125A TP+N Metal Fused Switch
Part Code: DFS125K
Stock Code: 2546-3365
Features
- Isolator switch, AC22 and AC23 for distribution and motors loads
- 125A fuses included
- Powder coated mild steel enclosure with RAL7032 finish
- Padlockable using up to 3 padlocks
- Door interlocked padlockable handle as standard
- Terminal shrouds to IP20 line side
- Disconnectable solid neutral link
- Bottom mounted gland plate
- [not suitable for outdoor use]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Contactum
- Current Rating
- 125A
- Depth
- 200mm
- Dimensions
- (H)600 mm x (W)400 mm x (D)200 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Rotary
- Height
- 600mm
- IP Rating
- IP66
- Lockable
- Yes
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Standards
- BS EN 60269/BS 88
- Supplied With
- 3 x 125A Fuses
- Terminal Capacity
- 50mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 415V 690V
- Weight
- 15.28kg
- Width
- 400mm
