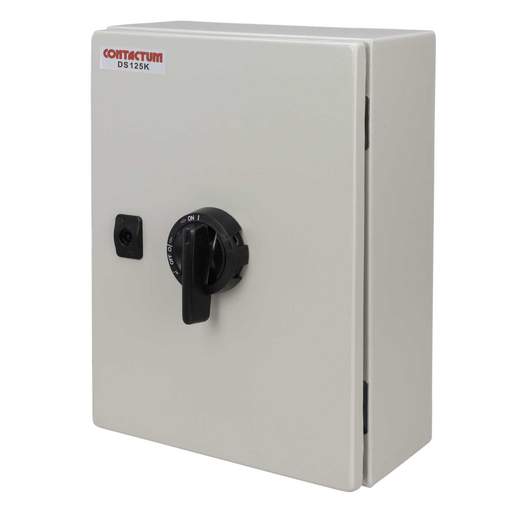

Contactum 125A TP+N Metal Isolator Switch Disconnector
Part Code: DS125K
Stock Code: 2546-3455
Contactum 125A TP+N Metal Isolator Switch Disconnector
Part Code: DS125K
Stock Code: 2546-3455
Features
- Fully rated AC22 for distribution loads
- Terminal shrouds to IP20 line side
- Disconnectable solid neutral link
- Padlockable using up to 3 padlocks
- Door interlocked padlockable handle as standard
- Paint finish RAL 7032
- Bottom mounted gland plate
- [not suitable for outdoor use]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Contactum
- Cable Entry
- Bottom
- Current Rating
- 125A
- Depth
- 150mm
- Dimensions
- (H)400 mm x (W)300 mm x (D)150 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Rotary
- Height
- 400mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Powder Coated Sheet Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Standards
- BS EN 60947-3
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 415V 690V
- Weight
- 7.50000kg
- Width
- 300mm
