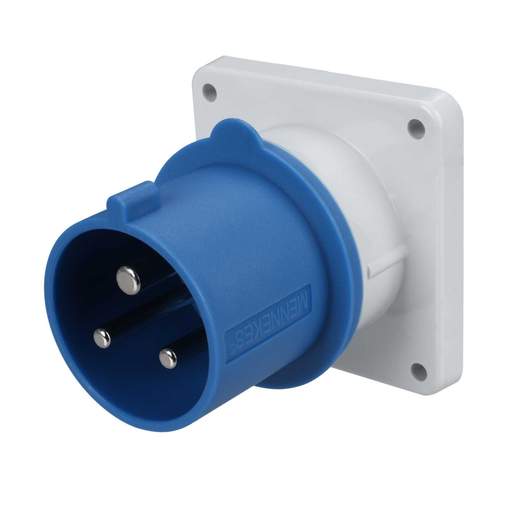

Mennekes 32A 2P+E 230V Panel Mounted Appliance Inlet IP44
Part Code: 817
Stock Code: 0140-0257
Mennekes 32A 2P+E 230V Panel Mounted Appliance Inlet IP44
Part Code: 817
Stock Code: 0140-0257
Features
- Screw terminals
- Nickel-plated contacts
- A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Mennekes
- Colour
- Blue
- Current Rating
- 32A
- Depth
- 90mm
- Dimensions
- (H)69.5 mm x (W)85.7 mm x (D)90 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 69.5mm
- IP Rating
- IP44
- Mounting
- Panel
- Number of Poles
- 2P E
- Packaging Types
- Each
- Standards
- BS 4343
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 230V
- Weight
- 0.19800kg
- Width
- 85.7mm
