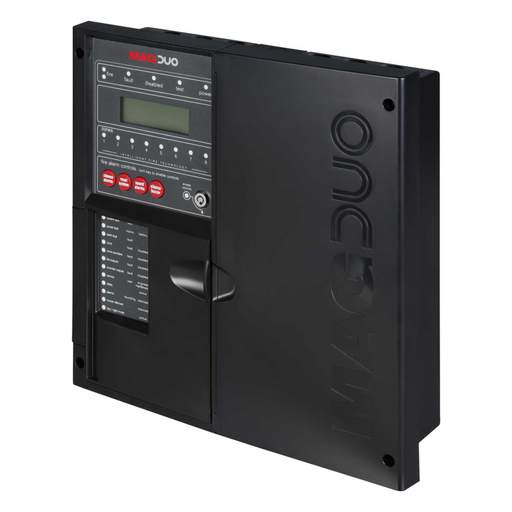

Magduo MAGDUO 4 Zone Two Wire Conventional Fire Panel Black
Part Code: MAGDUO4B
Stock Code: 2551-4725
Magduo MAGDUO 4 Zone Two Wire Conventional Fire Panel Black
Part Code: MAGDUO4B
Stock Code: 2551-4725
Features
- Two wire fire alarm system
- Active end of line monitoring and head removal
- Up to 32 devices per zone [dependent on device loading unit: DLU]
- 4 line x 20 character LCD display
- Ability to differentiate between smoke detector, heat detector or a manual call point alarms
- RS485 connection to up to 8 repeater panels
- Event log storing up to 500 events
- 3 enhanced test modes
- Certified to EN54 2/4 standards
- Requires 2 x 12V 3.2Ah batteries
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- ESP
- Auxiliary Power Supply
- 250mA @ 24V DC
- Battery Type
- Sealed Lead Acid
- Colour
- Black
- Depth
- 99mm
- Dimensions
- (H)331 mm x (W)331 mm x (D)99 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 331mm
- Material
- ABS
- Maximum Detectorsper Zone
- 32
- Number of Zones
- 4
- Packaging Types
- Each
- Product Range
- MAGDUO
- Standards
- EN 54
- Type
- Fire Panel
- Unspsc V18
- 46182504
- Unspsc V24
- 46182504
- Weight
- 2.30000kg
- Width
- 331mm
