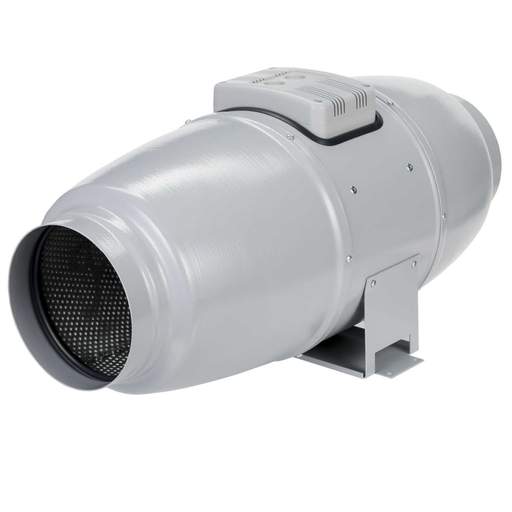

Addvent 125mm 5" Acoustic In-Duct Fan
Part Code: AVIAMI125
Stock Code: 2561-2909
Addvent 125mm 5" Acoustic In-Duct Fan
Part Code: AVIAMI125
Stock Code: 2561-2909
Features
- Acoustically lined fan for maximum noise reduction
- Can be connected to a fan speed regulator or control system
- Built-in mounting foot
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Addvent
- Airflow Cubic Metresper Hour
- 235 / 347 m³/h
- Airflow Litresper Second
- 65 / 96 l/s
- Class Type
- Class 1
- Colour
- Grey
- Decibel Rating
- 25 / 29 dB[A] @ 3 m
- Dimensions
- (L)474 mm x (H)251 mm x (W)243 mm
- Ducting Size
- 125mm
- Guarantee
- 5 Years
- Height
- 251mm
- IP Rating
- IP44
- Length
- 474mm
- Material
- Polymer Coated Steel
- Motor Type
- Single Phase
- Mounting
- Wall / Floor / Ceiling
- Packaging Types
- Each
- Power Rating
- 29W 25W
- Size
- 125mm
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 5.70000kg
- Width
- 243mm
