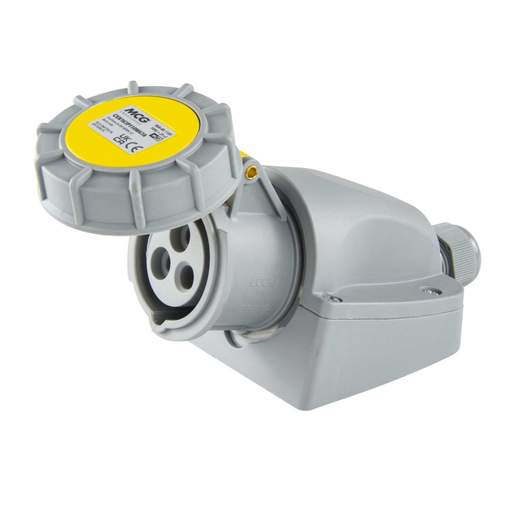

MCG 16A 2P+E 110V Wall Mounted Socket IP67
Part Code: CXN163P110W67A
Stock Code: 2570-5228
MCG 16A 2P+E 110V Wall Mounted Socket IP67
Part Code: CXN163P110W67A
Stock Code: 2570-5228
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Fast and simple assembly and wiring, cuts time and costs
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to 50°C
- Screwless cable grip
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Top Gland Entry - M20 x 1.5 Rear knockout
- Colour
- Yellow
- Compliance
- UKCA, CE
- Current Rating
- 16A
- Depth
- 88mm
- Dimensions
- (H)135 mm x (W)90.5 mm x (D)88 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 135mm
- IP Rating
- IP67
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 2P E
- Packaging Types
- Each
- Standards
- IEC/EN 60309-1/2
- Supplied With
- 20mm Gland
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 110V
- Weight
- 0.28000kg
- Width
- 90.5mm
