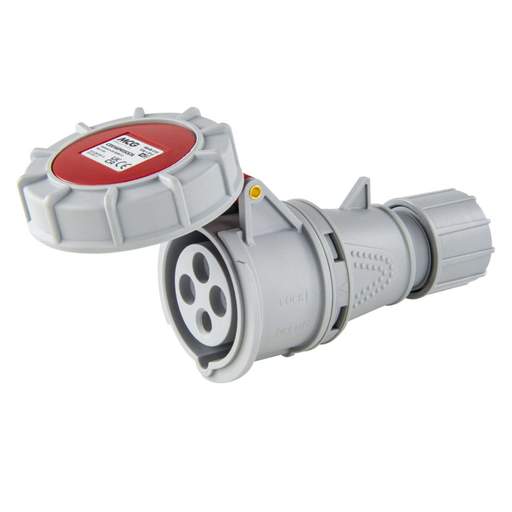

MCG 16A 3P+E 415V Coupler IP67
Part Code: CXN164P415C67A
Stock Code: 2570-5240
MCG 16A 3P+E 415V Coupler IP67
Part Code: CXN164P415C67A
Stock Code: 2570-5240
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Quick release feature
- Fast and simple assembly and wiring, cuts time and costs
- Ergonomic grip
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to 50°C
- Screwless cable grip
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- UKCA, CE
- Current Rating
- 16A
- Diameter
- 79mm
- Dimensions
- (L)146 mm x (Dia)79 mm x (H)85 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- IP Rating
- IP67
- Length
- 146mm
- Material
- Thermoplastic
- Mounting
- Trailing
- Number of Poles
- 3P E
- Packaging Types
- Each
- Standards
- IEC/EN 60309-1/2
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.20000kg
