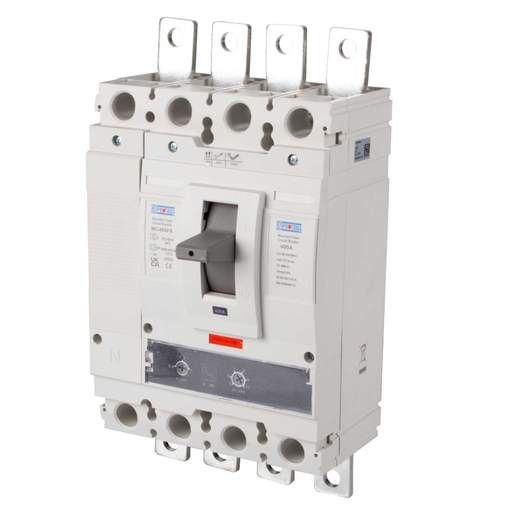

Proteus 400A Four Pole 50kA MCCB
Part Code: MC400FA
Stock Code: 2575-8979
Proteus 400A Four Pole 50kA MCCB
Part Code: MC400FA
Stock Code: 2575-8979
Features
- MC Range 4P MCCB'S available from 63A to 800A
- Single, Triple and Four Pole available, Single and Triple Pole may be fitted as outgoing devices in MC range panel boards
- Interrupting capacities up to 50kA at 400/415V AC
- Standard calibration is at 40 degrees
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 400A
- Depth
- 115mm
- Dimensions
- (H)350 mm x (W)190 mm x (D)115 mm
- Guarantee
- 1 Year
- Height
- 350mm
- IP Rating
- IP2X
- Incoming Terminal Capacity
- 120mm²
- Mounting
- Panel
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Outgoing Terminal Capacity
- 120mm²
- Packaging Types
- Each
- Product Range
- MC Range
- Short Circuit Rating
- 50kA
- Standards
- BS EN 60947-2
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 230V AC 400V AC
- Weight
- 6.00000kg
- Width
- 190mm
