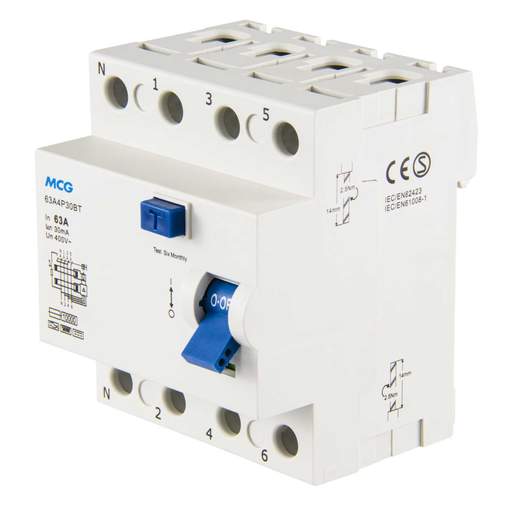

MCG 63A 4 Pole 30mA Type B RCD
Part Code: 63A4P30BT
Stock Code: 2577-8737
MCG 63A 4 Pole 30mA Type B RCD
Part Code: 63A4P30BT
Stock Code: 2577-8737
Features
- Insulated DIN rail clips
- Sensitivity 30mA [10kA]
- Test 'T' operating test button on the front panel
- Fault tripping indicator window
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Bidirectional
- Yes
- Compliance
- UKCA, CE
- Current Rating
- 63A
- Depth
- 65mm
- Dimensions
- (H)82.5 mm x (W)72 mm x (D)65 mm
- Guarantee
- 1 Year
- Height
- 82.5mm
- Incoming Terminal Capacity
- 35mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Outgoing Terminal Capacity
- 35mm²
- Packaging Types
- Box
- Rcd Type
- B
- Short Circuit Rating
- 10kA
- Standards
- IEC 61008-1, IEC 62423
- Torque Settings
- 2.5Nm
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 415V
- Weight
- 0.40000kg
- Width
- 72mm
