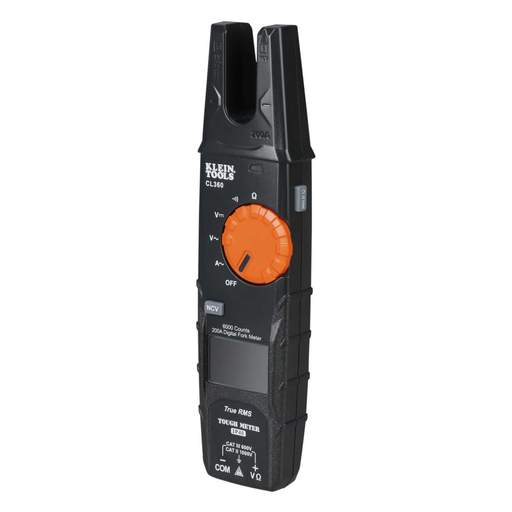

Klein CL360 200A AC Auto Ranging Open Jaw Clamp Meter
Part Code: CL360
Stock Code: 2582-8030
Klein CL360 200A AC Auto Ranging Open Jaw Clamp Meter
Part Code: CL360
Stock Code: 2582-8030
Features
- Automatically ranging True Root Mean Squared [TRMS] measurement technology for accuracy
- Measures AC current via the clamp and AC/DC voltage, resistance and continuity via test leads
- Wide jaw for measuring current in cables up to 3/0 sizes, accommodates cables of diameters up to 14.7mm
- Non-contact voltage tester integrated into the jaw
- Includes a carrying case, test leads and 2 x AAA batteries
- Jaw and housing: CAT IV 600V, CAT III 1000V
- Electrical: CAT III 600V, CAT II 1000V, Class 2, double insulation
- Backlit display for clear readings
- Rugged Klein 'Tough Meter' is built to withstand a 9.9ft [3m] drop
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light industrial locations
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 200A
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Compliance
- CE, ETL
- Data Hold
- Yes
- Dc Voltage Measurement
- 1000V DC
- Dimensions
- (L)213 mm x (H)35 mm x (W)54 mm
- Display Count
- 6000
- Display Type
- Backlit LCD
- Guarantee
- 2 Years
- Height
- 35mm
- IP Rating
- IP40
- Jaw Opening Capability
- 14.7mm
- Length
- 213mm
- Material
- Plastic
- Non Contact Measurement
- Yes
- Number of Batteries
- 2
- Packaging Types
- Pack
- Resistance
- 60MΩ
- Safety Range
- CAT IV 600V/CAT III 1000V [Jaw and Housing], CAT III 600V/CAT II 1000V [Electrical]
- Supplied With
- Carrying Case, Straight Input Test Leads, Batteries
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Weight
- 0.18000kg
- Width
- 54mm
