Legrand MyHOME Video Door Entry Panel Kit
Part Code: 829918
Stock Code: 2583-9184
Legrand MyHOME Video Door Entry Panel Kit
Part Code: 829918
Stock Code: 2583-9184
Features
- Can manage the opening of an electrical door lock [18V 4A impulsive, 250mA holding current, 30 ohm max]
- 2 wire video pushbutton panel with Zamac front cover and wide angle colour camera
- Fitted with white LED for the lighting of the shooting field in low light conditions
- IP54, IK10
- 2 DIN rail modules
- Maximum current of 600mA
- Video door entry kit comprising of:

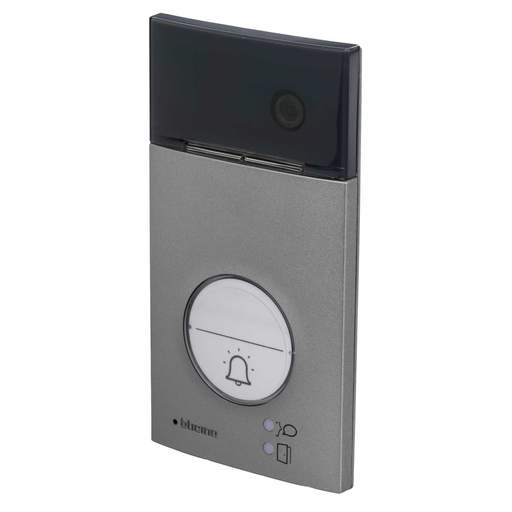

- 1 x LINEA 3000 [343081] wall mounted 1 or 2 way video entrance panel
- White LED backlit nameplate
- 1 x mini power supply [346030] with integrated video adapter to make small 2 wire video systems
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Finish
- Silver
- Guarantee
- 1 Year
- IP Rating
- IP55
- Packaging Types
- Each
- Product Range
- MyHOME
- Unspsc V18
- 46171619
- Unspsc V24
- 46171619
- Voltage Rating
- 230V
- Weight
- 0.44600kg
