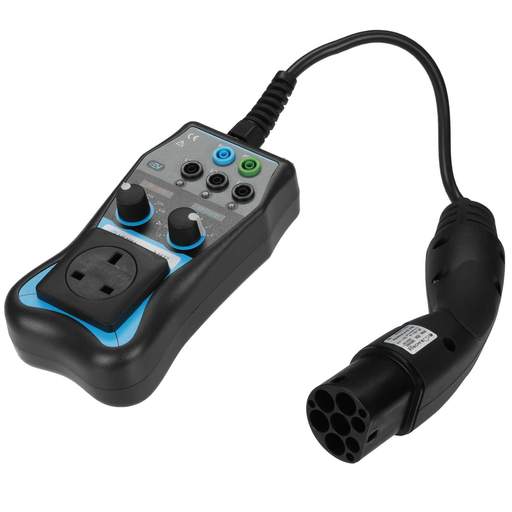

Metrel A1532 EVSE Adapter
Part Code: A1532
Stock Code: 2594-2483
Metrel A1532 EVSE Adapter
Part Code: A1532
Stock Code: 2594-2483
Features
- EVSE [Electric Vehicle Supply Equipment] adapter is a special accessory intended for testing mode 3 EV supply equipment with a type 2 connector
- Banana socket outputs for connection to a 3-phase installation tester
- Voltage indicators on EVSE output
- Proximity pilot resistance selector for simulation of EV cable presence and current rating detection
- Control pilot resistance selector for simulation of electric vehicle status
- Socket output for connection to a single phase installation tester [phase 1, neutral, PE]
- Type 2 male plug connector for connection to EVSE
- 6mA EV RCD support
- EVSE functional and auto sequence support
- MESM report creation
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Dimensions
- (L)70 mm x (H)100 mm x (W)200 mm
- Height
- 100mm
- IP Rating
- IP40
- Length
- 70mm
- Packaging Types
- Each
- Standards
- IEC/EN 61851, IEC/EN 61557
- Unspsc V18
- 41111905
- Unspsc V24
- 41111905
- Weight
- 0.82000kg
- Width
- 200mm
