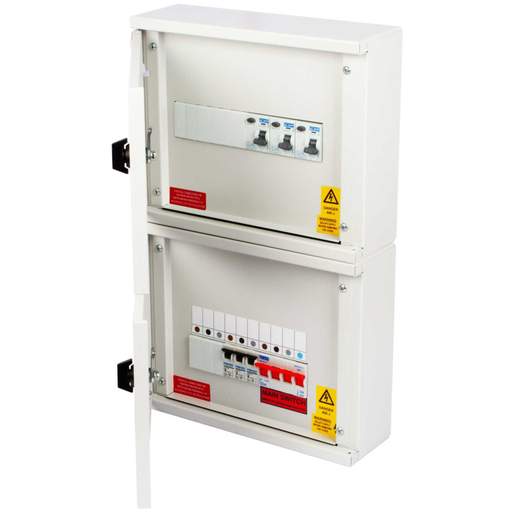

Proteus EV 3 Way TP+N Populated Distribution Board with 100A Mains Incomer / RCDs
Part Code: PEV230RCD
Stock Code: 2595-2155
Proteus EV 3 Way TP+N Populated Distribution Board with 100A Mains Incomer / RCDs
Part Code: PEV230RCD
Stock Code: 2595-2155
Features
- 100A 4P main isolator, up to 50mm² cable
- Supplied with 3 x 40A C curve SP MCBs cabled to 3 x 2P 30mA Type A RCDs
- Metal enclosure to IP3X
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Top Gland Plate Removable For Ease Of Cutting
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)538 mm x (W)326 mm x (D)110 mm
- Door Type
- Side Hinged Door (Removable)
- Guarantee
- 1 Year
- Height
- 538mm
- IP Rating
- IP3X
- Material
- 1.2 mm Cold Rolled Steel
- Mounting
- Wall Mounted
- Packaging Types
- Each
- Product Range
- Proteus EV
- Standards
- BS EN 61439 pt 1 and 3
- Torque Settings
- Isolator 2 - 2.5 Nm
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V AC 400V AC
- Weight
- 4.00000kg
- Width
- 326mm
