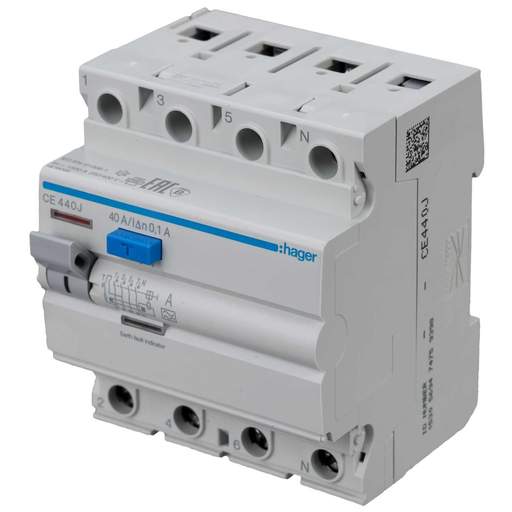

Hager 40A 4 Pole 100mA Type A RCD
Part Code: CE440J
Stock Code: 2598-8392
Hager 40A 4 Pole 100mA Type A RCD
Part Code: CE440J
Stock Code: 2598-8392
Features
- All RCDs have trip free mechanisms and can be padlocked either On or Off
- Complies with BS EN 61008 IEC1008
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 40A
- Dc Sensitive
- Yes
- Depth
- 70mm
- Dimensions
- (H)83 mm x (W)70 mm x (D)70 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Incoming Terminal Capacity
- Rigid 25mm² Flexible 16mm²
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Outgoing Terminal Capacity
- Rigid 25mm² Flexible 16mm²
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61008
- Tripping Sensitivity
- 100mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V 415V
- Weight
- 0.33kg
- Width
- 70mm
