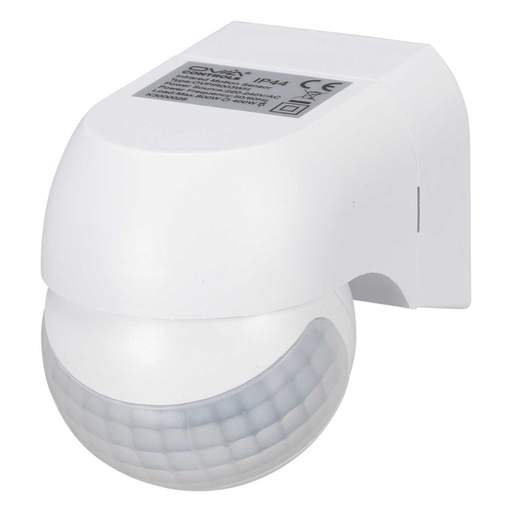

Ovia 180° Rotatable PIR Motion Detector IP44 White
Part Code: OVPIR003WH
Stock Code: 2598-9169
Ovia 180° Rotatable PIR Motion Detector IP44 White
Part Code: OVPIR003WH
Stock Code: 2598-9169
Features
- 180° detection
- Rotatable
- Adjustable time and lux levels
- Zero cross technology
- Maximum load: 400W LED and 800W incandescent
- IP44 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 2
- Colour
- White
- Compliance
- UKCA, CE
- Depth
- 80.2mm
- Detection Angle
- 180°
- Detection Range
- 12m
- Dimensions
- (H)68.2 mm x (W)55.5 mm x (D)80.2 mm
- Guarantee
- 5 Years
- Height
- 68.2mm
- IP Rating
- IP44
- Lux Adjustment
- Yes
- Material
- Polycarbonate
- Maximum Switching Load
- Incandescent - 800W, LED - 400W
- Mounting
- Wall
- Packaging Types
- Each
- Product Range
- Controls
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 15 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.09500kg
- Width
- 55.5mm
