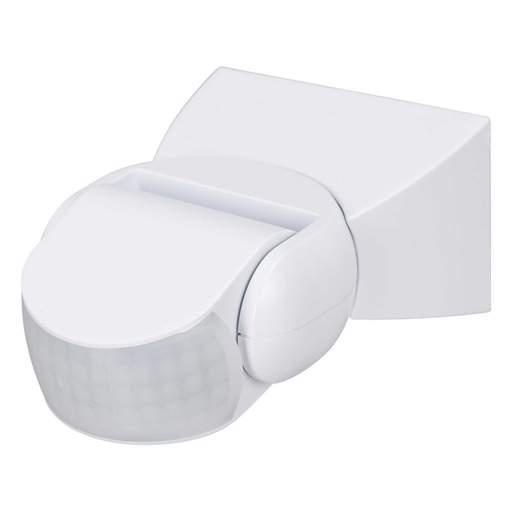

Ovia 180° Multi-Directional PIR Motion Detector IP65 White
Part Code: OVPIR004WH
Stock Code: 2598-9175
Ovia 180° Multi-Directional PIR Motion Detector IP65 White
Part Code: OVPIR004WH
Stock Code: 2598-9175
Features
- 180° detection
- Multi-directional
- 12m detection range
- Adjustable time and lux levels
- Zero cross technology
- Maximum load: 300W LED and 1200W incandescent
- IP65 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 2
- Colour
- White
- Compliance
- UKCA, CE
- Depth
- 119.5mm
- Detection Angle
- 180°
- Detection Range
- 12m
- Dimensions
- (H)51.5 mm x (W)80 mm x (D)119.5 mm
- Guarantee
- 5 Years
- Height
- 51.5mm
- IP Rating
- IP65
- Lux Adjustment
- Yes
- Material
- Polycarbonate
- Maximum Switching Load
- Incandescent - 1200W, LED - 300W
- Mounting
- Wall
- Packaging Types
- Each
- Product Range
- Controls
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 15 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.15800kg
- Width
- 80mm
