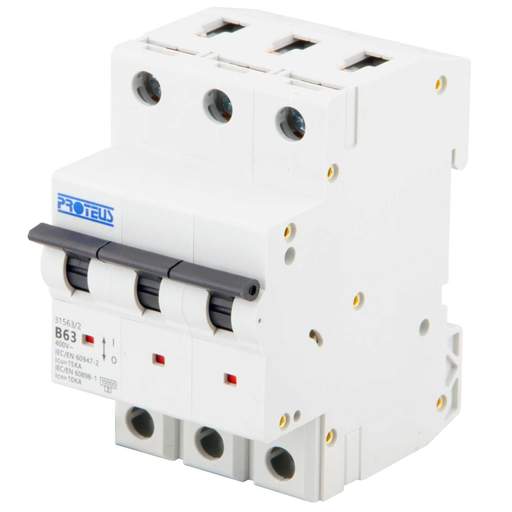

Proteus 63A Triple Pole 15kA B Curve MCB
Part Code: 31563/2
Stock Code: 2604-2566
Proteus 63A Triple Pole 15kA B Curve MCB
Part Code: 31563/2
Stock Code: 2604-2566
Features
- Suitable for AX, ABX, BX, XL, CBX, MCX and PDU boards
- Thermal-Magnetic operation
- Current limiting, B, C, D Curve operating characteristics
- SP, DP, TP available
- Mechanical Flag Indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Contacts are manufactured from carefully chosen materials
- Selected for their low electrical resistance and low propensity to weld under fault conditions
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Compliance
- BS EN 60898
- Current Rating
- 63A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)52.5 mm x (D)75 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 25 mm²
- Material
- Flame Retardent PA
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- Proteus MCB
- Short Circuit Rating
- 15kA
- Standards
- BS EN 60898
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V 415V
- Weight
- 0.40300kg
- Width
- 52.5mm
