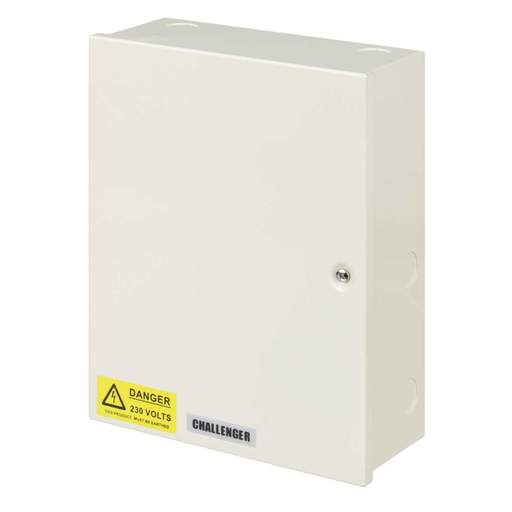

Challenger 5A 12V DC Boxed Switch Mode Power Supply Unit
Part Code: AAPSU5S
Stock Code: 2604-2797
Challenger 5A 12V DC Boxed Switch Mode Power Supply Unit
Part Code: AAPSU5S
Stock Code: 2604-2797
Features
- Regulated power supply with charger
- Automatic switch over to battery back up when AC fails
- 5A continuous supply current at 13.8V DC
- Filtered and electronically regulated
- Built in charger for sealed lead acid or gel type batteries
- Charge current 500mA
- Thermal resettable PPTC fuse with automatic reset
- Input and output status LED
- 12V 7Ah maximum battery capacity for back up [supplied separately]
- IP40
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Challenger
- Colour
- White
- Current Rating
- 5A
- Depth
- 80mm
- Dimensions
- (H)230 mm x (W)180 mm x (D)80 mm
- Guarantee
- 1 Year
- Height
- 230mm
- Packaging Types
- Each
- Temperature Range
- -10-40°C
- Unspsc V18
- 46171619
- Unspsc V24
- 46171619
- Voltage Rating
- 230V
- Weight
- 1.58060kg
- Width
- 180mm
