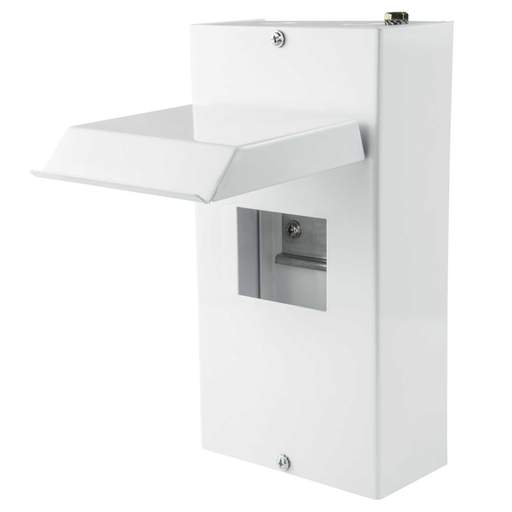

MCG 3 Module Large Metal Clad Enclosure
Part Code: ME3L
Stock Code: 2606-4976
MCG 3 Module Large Metal Clad Enclosure
Part Code: ME3L
Stock Code: 2606-4976
Features
- Fully enclosed metal construction body with drop-down metal cover, DIN rail and earth bar
- Raised keyholes for secure easy installation
- Multiple circular cable entry knockouts top and bottom [M20 and M25]
- Finished in white polyester powder coating to RAL9010
- IP20 protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts [M20 and M25]
- Compliance
- UKCA, CE
- Depth
- 82mm
- Dimensions
- (H)225 mm x (W)115 mm x (D)82 mm
- Din Rail
- Yes
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 225mm
- IP Rating
- IP20
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 3
- Packaging Types
- Box
- Unspsc V18
- 39121318
- Unspsc V24
- 39121318
- Weight
- 1.05000kg
- Width
- 115mm
