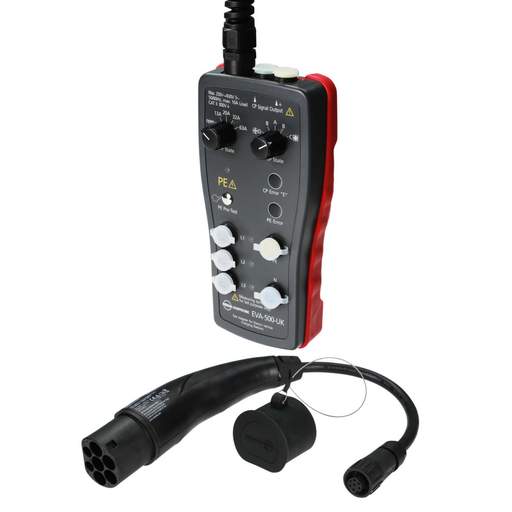

Beha-Amprobe Test Adaptor Kit for EV Charging Stations
Part Code: EV-520
Stock Code: 2607-3829
Beha-Amprobe Test Adaptor Kit for EV Charging Stations
Part Code: EV-520
Stock Code: 2607-3829
Features
- Test adaptor kit for type 3 charging station functional and safety tests [requires a multifunction tester or similar instrument]
- EV connectors type 2 and type 1
- PE pre-test to detect the presence of dangerous PE voltage
- Proximity Pilot [PP] cable simulation to simulate various current capabilities of the charging cables
- Control Pilot [CP] vehicle simulation to simulate various charging states
- Separate phase indication [3 LED lamps] to indicate if voltage is present
- L1, L2, L3, N and PE terminals allowing an installation tester to perform safety and functional tests
- Mains sockets for the connection of an external load to test the performance of the power meter
- Simulation of CP error "E"
- Simulation of PE error [earth fault]
- CP signal output terminals testing the communication between the adaptor [simulated electrical vehicle] and charging station
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Dimensions
- (L)220 mm x (H)45 mm x (W)110 mm
- Guarantee
- 1 Year
- Height
- 45mm
- IP Rating
- IP54
- Length
- 220mm
- Neon
- Yes
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Each
- Product Range
- EV-500 Series
- Rechargeable
- No
- Standards
- IEC 61010-1:2010, IEC 61010-2-030:2010
- Storage Temperature Range
- -10 - 50°C
- Supplied With
- EVA-500-UK Test Adaptor, EVC-20 Test Cable, User Manual, Soft Carry Case
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Weight
- 2.15000kg
- Width
- 110mm
