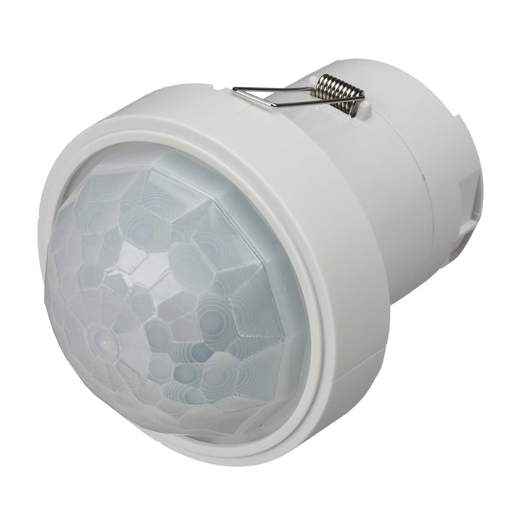

CP Electronics Legrand Flush Mounted Low Temperature DALI/DSI Digital Dimming PIR Detector
Part Code: EBDHS-DD-LT30
Stock Code: 2609-6422
CP Electronics Legrand Flush Mounted Low Temperature DALI/DSI Digital Dimming PIR Detector
Part Code: EBDHS-DD-LT30
Stock Code: 2609-6422
Features
- Developed specifically for high bay lighting control in areas with demanding spaces and increased mounting heights
- Ideal for cold storage warehousing control [-30ºC to 35ºC]
- DALI / DSI digital dimming functionality
- Diameter reach on floor: 40m at 15m mounting height
- IP65 rating
- Step-down illuminance
- Maintained illuminance [daylight linking or daylight harvesting]
- Two channel flexibility
- Includes 2 clip-on masking shields, enabling precise masking of the detection shape
- Can control up to 20 dimming ballasts
- Suitable for all lighting types
- User handset available to control on/off, lux levels and preset scenes [not included]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CP Electronics Legrand
- Class Type
- Class 2
- Colour
- White
- Cut Out
- 64mm
- Depth
- 112mm
- Detection Angle
- 360°
- Detection Range
- 40m
- Diameter
- 88mm
- Dimensions
- (Dia)88 mm x (D)112 mm
- Guarantee
- 5 Years
- IP Rating
- IP65
- Ik Rating
- IK05
- Lux Adjustment
- Yes
- Material
- ABS / Polycarbonate
- Maximum Switching Load
- 2300W
- Mounting
- Ceiling / Recessed
- Mounting Height
- 20m
- Packaging Types
- Each
- Product Range
- EBDHS
- Remote Control
- No
- Sensor
- PIR
- Temperature Range
- -30 - 35°C
- Timer Adjustment
- 10 secs - 99 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.20000kg
