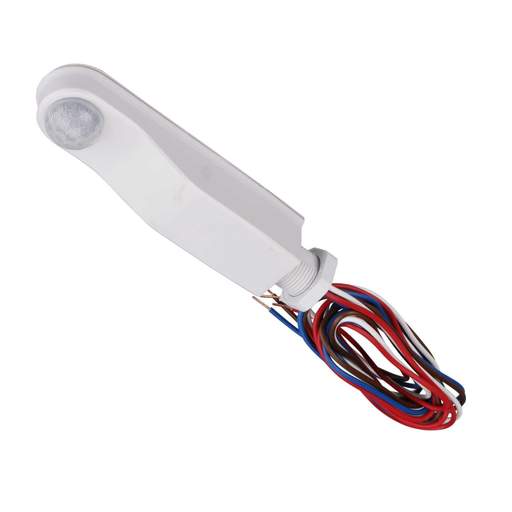

CP Electronics Legrand Miniature Batten Mounted Low Temperature Direct Dim DALI/DSI PIR Sensor IP65
Part Code: EBMPIR-MB-DD-LT30
Stock Code: 2609-6449
CP Electronics Legrand Miniature Batten Mounted Low Temperature Direct Dim DALI/DSI PIR Sensor IP65
Part Code: EBMPIR-MB-DD-LT30
Stock Code: 2609-6449
Features
- Miniature batten mount retrofit PIR
- Simple retrofit to commercial luminaires and basic battens
- Ideal for cold storage warehousing control [-30ºC to 35ºC]
- Diameter reach on floor: 16m
- Direct dimming [DALI / DSI]
- Pre-wired [1m cable length]
- Suitable for any luminaire with a 20mm cable entry
- Can control up to 10 drivers
- User handset available to control On/Off, lux levels and preset scenes [not included]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CP Electronics Legrand
- Class Type
- Class 2
- Colour
- White
- Depth
- 28mm
- Detection Angle
- 360°
- Detection Range
- 16m
- Dimensions
- (L)144 mm x (W)33 mm x (D)28 mm
- Guarantee
- 5 Years
- IP Rating
- IP65
- Ik Rating
- IK05
- Length
- 144mm
- Lux Adjustment
- Yes
- Material
- ABS / Polycarbonate
- Maximum Switching Load
- 460W
- Mounting
- Batten
- Mounting Height
- 7m
- Packaging Types
- Each
- Product Range
- EBMPIR
- Remote Control
- No
- Sensor
- PIR
- Temperature Range
- -30 - +35°C
- Timer Adjustment
- 10 secs - 99 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.20000kg
- Width
- 33mm
