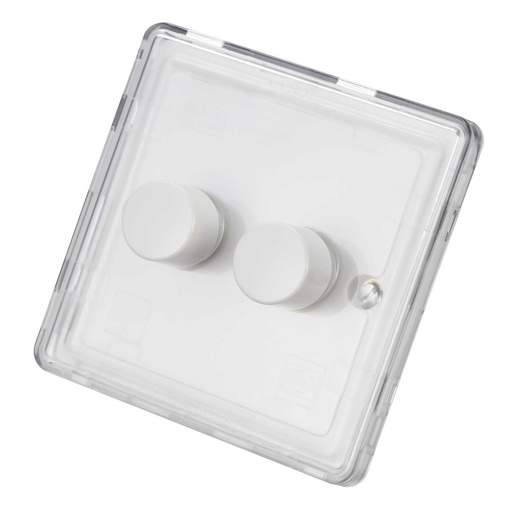

MK Dimensions 300W 2 Gang 2 Way LED Intelligent Dimmer Switch Module White
Part Code: MH1524WHICLV
Stock Code: 2624-0452
MK Dimensions 300W 2 Gang 2 Way LED Intelligent Dimmer Switch Module White
Part Code: MH1524WHICLV
Stock Code: 2624-0452
Features
- Front plate is not included, you will require part number MHFP034 in your choice of finish, please order separately
- Suitable for dimming low voltage halogen lamps 40 - 240W/VA, dimmable LED lamps 4 - 70W, GLS and mains halogen lamps 40 - 300W
- Maximum of 4 transformers
- Maximum of 10 LED lamps
- Load current sensing
- Soft start
- Supplied with a gasket for installation on uneven wall surfaces
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 9mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)9 mm
- Fixing Centres
- 60.3mm
- Frequency
- 50/60 Hz
- Guarantee
- 20 Years
- Height
- 86mm
- Insert Colours
- White
- Mounting
- Wall
- Number of Gangs
- 2
- Number of Ways
- 2
- Operation Type
- Push On / Off
- Packaging Types
- Each
- Power Rating
- 300W
- Product Range
- Dimensions
- Standards
- BS EN 60669-2-1 and IEC 60669-2-1
- Suitable For

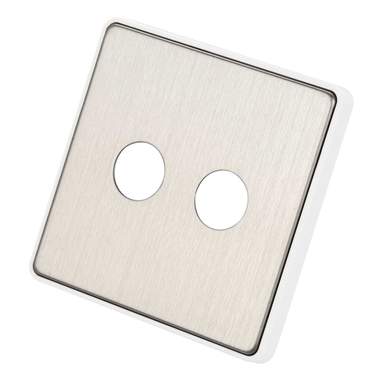

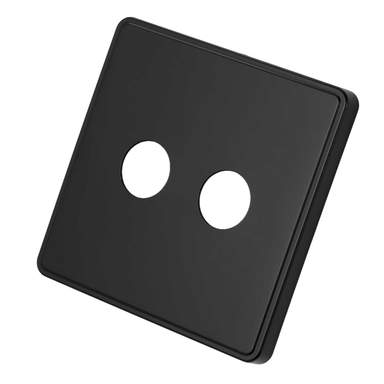

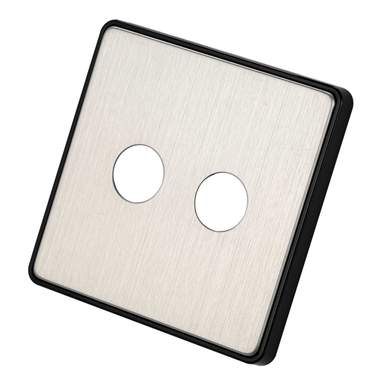

- MHFP034BSSB, MHFP034BSSW, MHFP034MBK and MHFP034WHI Front Plates
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 230V
- Weight
- 0.18500kg
- Width
- 86mm
