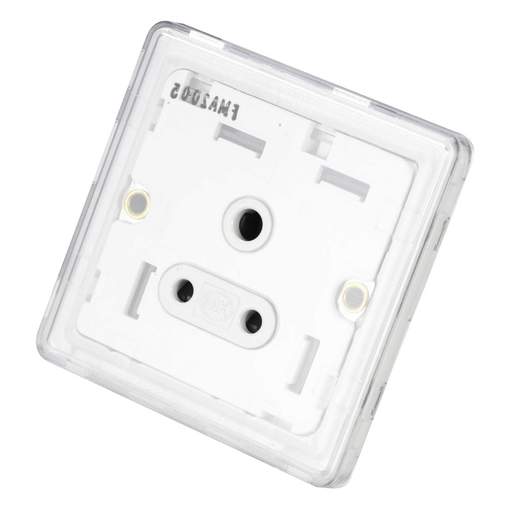

MK Dimensions 5A 1 Gang Unswitched Socket Module White
Part Code: MH4381WHIC
Stock Code: 2624-0692
MK Dimensions 5A 1 Gang Unswitched Socket Module White
Part Code: MH4381WHIC
Stock Code: 2624-0692
Features
- Front plate is not included, you will require part number MHFP015 in your choice of finish, please order separately
- Dual earth terminals for high integrity earthing applications
- Top access, angled in-line terminals make wiring easier and quicker
- Backed out and captive terminal screws
- Supplied with a gasket for installation on uneven wall surfaces
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 5A
- Depth
- 9mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)9 mm
- Fixing Centres
- 60.3mm
- Frequency
- 50/60 Hz
- Guarantee
- 20 Years
- Height
- 86mm
- Insert Colours
- White
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- No
- Number of Gangs
- 1
- Packaging Types
- Each
- Product Range
- Dimensions
- Standards
- BS 546:1950
- Suitable For
- MHFP015BSSB, MHFP015BSSW, MHFP015MBK and MHFP015WHI Front Plates
- Switched Unswitched
- Unswitched
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 0.09200kg
- Width
- 86mm
