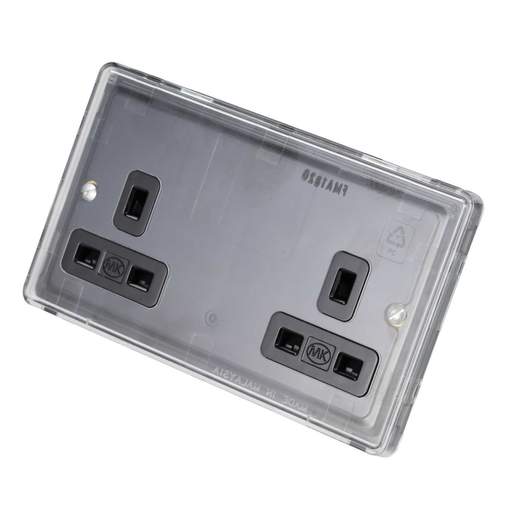

MK Dimensions 13A 2 Gang Unswitched Socket Module Black
Part Code: MH4781BLKC
Stock Code: 2624-0731
MK Dimensions 13A 2 Gang Unswitched Socket Module Black
Part Code: MH4781BLKC
Stock Code: 2624-0731
Features
- Front Plate is not included, you will require part number MHFP018 in your choice of finish, please order separately
- Dual earth terminals for high integrity earthing applications
- Top access, angled in-line terminals make wiring easier and quicker
- Backed out and captive terminal screws
- Supplied with a gasket for installation on uneven wall surfaces
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 13A
- Depth
- 9mm
- Dimensions
- (H)86 mm x (W)146 mm x (D)9 mm
- Fixing Centres
- 120.6mm
- Frequency
- 50/60 Hz
- Guarantee
- 20 Years
- Height
- 86mm
- Insert Colours
- Black
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- No
- Number of Gangs
- 2
- Packaging Types
- Each
- Product Range
- Dimensions
- Standards
- BS 1363-2:2016
- Suitable For
- MHFP018BSSB Front Plate
- Switched Unswitched
- Unswitched
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 0.17000kg
- Width
- 146mm
